Datasheet & SDS.
Factory PDFs from KM Innovation. If a revision date matters to your QA, email Florida and we send the file that matches the lot.
ZnSe datasheet (PDF)
KM Innovation zinc selenide properties, optical data, process data.
Safety data sheet (PDF)
23.07 KM Innovation Zinc Selenide SDS. Read it before the first grind.
RoHS2 test report (PDF)
EU 2015/863 lab report on file. Declaration against a part number still goes with the quote.
ISO 9001:2015 (PDF)
South Korea plant. ISCQM-1611, latest issue 14 June 2026, valid through 13 June 2027.
KM datasheet values
From KM Innovation’s ZnSe data sheet. Lot data on the quote. These are not a substitute for the PDF. An older graphic on a leftover Korean factory page lists different thermal/mechanical numbers — we do not use that table. Canonical values are this PDF.

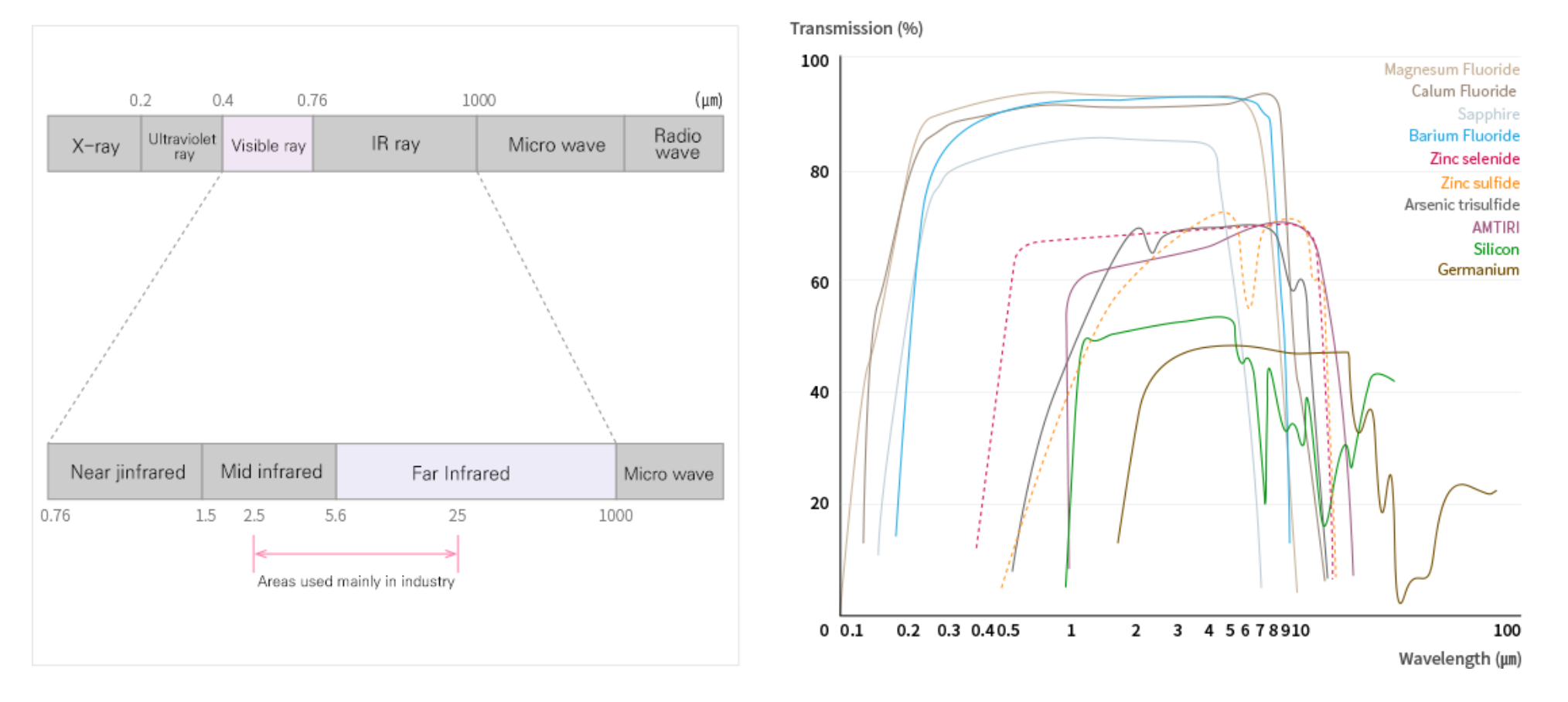

Band — three sources, no invention
Factory English page: near-IR to far-IR. Factory Korean page: visible to far-IR. KM datasheet plot at 6.3 mm thickness: 2–25 µm curve, high transmittance through ~14 µm then falling. This USA desk uses 0.6–16 µm as the uncoated working band (HeNe 0.633 µm + CO2 10.6 µm). Uncoated Fresnel loss ~17% per face (n = 2.403).
Optical
- n @ 10.6 µm2.403
- n inhomogeneity @ 632.8 nm< 3 ppm
- Bulk absorption @ 10.6 µm< 0.0005 cm−1
Physical
- Crystal structureCubic
- Grain size< 100 µm
- Density5.27 g/cm³
- Chemical purity (KM sheet)> 99.999%
- InclusionsNone > 0.05 mm
- Resistivity> 1012 Ω·cm
Thermal / mechanical
- CTE @ 293 K7.48 × 10−6 /K
- Thermal conductivity @ 298 K20 W/m·K
- Specific heat0.377 J/g·K
- Knoop hardness110 kg/mm²
- Flexural strength (3-pt)54 MPa
- Fracture toughness1.1 MPa·m1/2
- Young’s modulus71 GPa
- Poisson’s ratio0.32

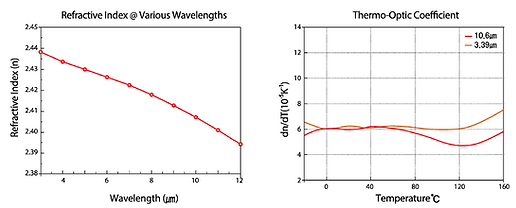

Refractive index @ 23 °C (KM table)
| Wavelength (µm) | n |
|---|---|
| 3 | 2.438034 |
| 4 | 2.433621 |
| 5 | 2.429995 |
| 6 | 2.426309 |
| 7 | 2.422390 |
| 8 | 2.417920 |
| 9 | 2.412854 |
| 9.4 | 2.410666 |
| 10 | 2.407196 |
| 10.6 | 2.403427 |
| 11 | 2.400807 |
| 12 | 2.393692 |
- Available maximum sizeDia 800 × 30 mm T
- Dome / special shapeConsult — send the print
Source: KM Innovation ZnSe data sheet. Lot values on the quotation if your QA needs them against a serial.
